TiltWatch Plus

SKU: 24114
$2.61

TiltWatch Plus

ABOUT THIS PRODUCT:

  • Degree of tilt detection
  • Complete overturn detection
  • Glass balls (non-magnetic)
  • Tamper-proof

Details

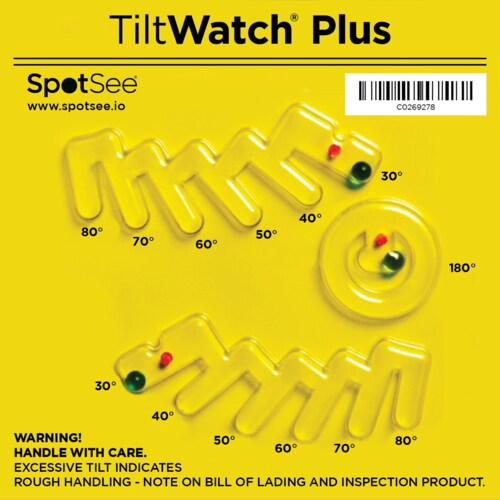

TiltWatch Plus indicates whether there has been tilt to the left or right, the degree of the tilt, or if complete overturn has occurred.

TiltWatch Plus consists of three separate indicators in a single unit:

  • One section indicates the degree of tilt to the left
  • The second section indicates the degree of tilt to the right
  • The third section indicates total overturn

Applications

  • Biotechnology and Drugs
  • Office Equipment
  • Medical Devices and Supplies
  • Appliances
  • Construction Supplies and Fixtures
  • Agriculture
  • Logistics / Transport and Storage
  • Computer Hardware
  • Auto and Truck Parts
  • Packaging/Crating
  • Auto and Truck Manufacturers
  • Chemicals/Petro-Chemicals
  • Energy and Utilities
  • Scientific and Technical Instruments
  • Consumer Electronics
  • Electronics
  • Art
  • HVAC
  • Industrial Equipment
  • Furniture and Fixtures
  • Aerospace and Defense

Specifications

Activation Angle: 10° increments from 30° axis (±5°)

Monitoring Range: Single plane and rollover

Adhesive: 1 mil high tack acrylic

Humidity Tolerance: 5% to 99% noncondensing

Temperature Tolerance: -40°C to 60°C

Composition: Clear PTE housing and plastic indicator

Size: 116.84 mm x 116.84 mm x 7.62 mm

Installation: Pressure-sensitive adhesive exposed when liner and arming pin are peeled away

Adhesive Shelf Life: 12 months (before application)

Product Numbers

TiltWatch Plus (includes Companion Labels)

24114
