TiltWatch XTR

SKU: 24101

TiltWatch XTR

(*) Minimum Quantity: 100

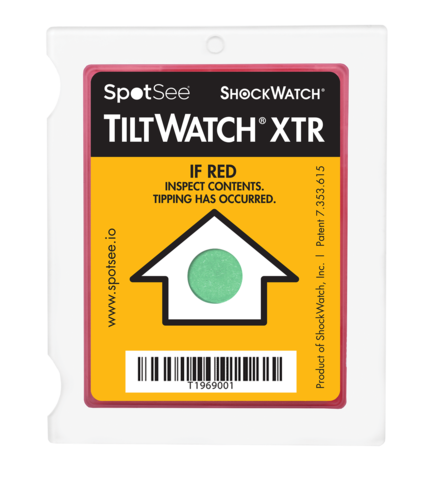

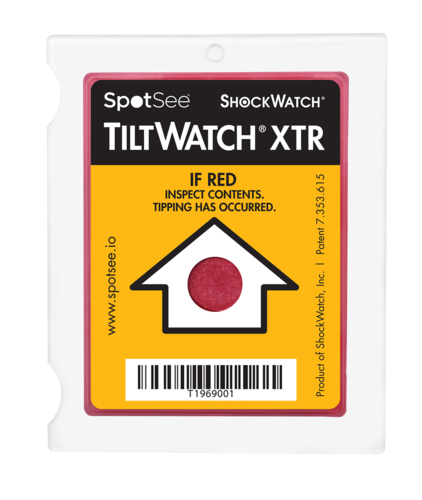

The TiltWatch® XTR is single-use tip indicator used to monitor goods that must remain upright. Once applied to the packaging, the TiltWatch XTR will provide evidence of mishandling if the shipment is tipped. However, the tilt indicator remains unaffected by movement resulting from normal handling conditions.


  • Greater than 80° tilt detection
  • Tamper-proof
  • Indicator will not activate under normal handling


  • Oil-filled water heaters
  • Electronics
  • Packaging/Crating
  • Aerospace & Defense
  • Scientific and Technical Instruments
  • Auto and Truck Parts
  • HVAC
  • Appliances
  • Office Equipment
  • Furniture and Fixtures
  • Compressors
  • Computer Hardware
  • Glass
  • Logistics / Transport and Storage
  • Industrial Equipment


Activation Angle: 80° ±5° from vertical

Monitoring Range; Single plane

Adhesive: 2 mil high tack acrylic

Humidity Tolerance: 5% to 99% noncondensing

Temperature Tolerance: -40°F to 140°F

Composition: Rigid polystyrene housing with non-magnetic steel indicator

Arming: Arms coincident with removal of adhesive liner

Size: 2.92 in x 2.37 in x 0.21 in

Installation: Pressure-sensitive adhesive or holes to accommodate screws, nails, or staples

Customization: Cobranding available on orders over 5,000 pieces

Adhesive Shelf Life: 2 years

Product Numbers

TiltWatch XTR


TiltWatch XTR Companion Labels (200)


TiltWatch XTR Companion Labels (500)
