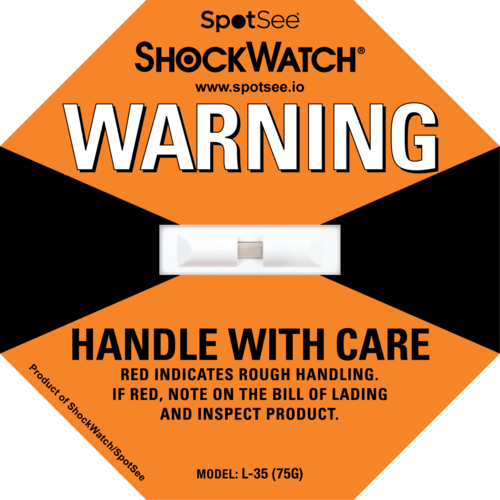

L-35 ShockWatch Label - Serialized - 75G (Orange)

Name: ShockWatch Label L-35 - Serialized - 75G (Orange)
SKU: 20300S
Price: 3.25 USD
Availability: InStock

SKU: 20300S

$3.25

Quantity discounts available

Quantity	Price

Quantity

(*) Minimum Quantity: 100

ABOUT THIS PRODUCT:

ShockWatch impact indicators for packaging deter mishandling and reduce damage related costs by indicating when fragile products have been exposed to a potentially damaging impact during transit or in storage. ShockWatch labels are tamperproof, mechanically-activated devices that turn bright red when an impact occurs.

Over 7 million ShockWatch labels are used each year as a highly visible deterrent to product mishandling.

Details

This product contains Ethylene Glycol a chemical known to the state of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov/product.

Applications

Energy and Utilities
Packaging/Crating
Telecommunications Equipment
Furniture and Fixtures
High Tech Equipment
Scientific Instruments
Medical Devices
Auto and Truck Parts
Industrial Equipment
Art
Glass
Consumer Electronics
Aerospace Components
Defense Components
Small Distribution Transformers
Packaging/Crating
Musical Instruments/Equipment
Construction Fixtures
Appliances
HVAC

Specifications

Sensitivity Range: 25G, 37G, 50G, 75G, 100G

Duration: 0.5 – 50 ms

Tolerance: ±15%

Operating Temperature: -25°C to 80°C

Shelf Life: 2 years from date of sale when stored at standard temperature and pressure (20°C, 1 ATM)

Size: 96.52 mm x 96.52 mm

	0-1ft³ 0-.03m³	1-5ft³ .03-.14m³	5-15ft³ .14-.42m³	15-50ft³ .42-1.42m³	50+ft³ 1.42+m³
0-10 lbs 0-4.56 kg	L-30 (100G)	L-30 (100G)	L-35 (75G)	L-35 (75G)	L-35 (75G)
10-25 lbs 4.56-11.34 kg	L-30 (100G)	L-35 (75G)	L-35 (75G)	L-47 (50G)	L-47 (50G)
25-50 lbs 11.34-22.68 kg	L-35 (75G)	L-35 (75G)	L-47 (50G)	L-47 (50G)	L-55 (37G)
50-100 lbs 22.68-45.36 kg	L-35 (75G)	L-47 (50G)	L-47 (50G)	L-55 (37G)	L-55 (37G)
100-250 lbs 45.36-113.40 kg	L-47 (50G)	L-47 (50G)	L-55 (37G)	L-55 (37G)	L-65 (25G)
250-1,000 lbs 113.40-453.59 kg	L-47 (50G)	L-47 (50G)	L-55 (37G)	L-65 (25G)	L-65 (25G)
1,000+ lbs 453.59+ kg	–	L-55 (37G)	L-65 (25G)	L-65 (25G)	L-65 (25G)

Product Numbers

L-30 ShockWatch Label 100G (Green)	20100
L-35 ShockWatch Label 75G (Orange)	20300
L-47 ShockWatch Label 50G (Red)	20500
L-55 ShockWatch Label 37G (Purple)	20686
L-65 ShockWatch Label 25G (Yellow)	20700
