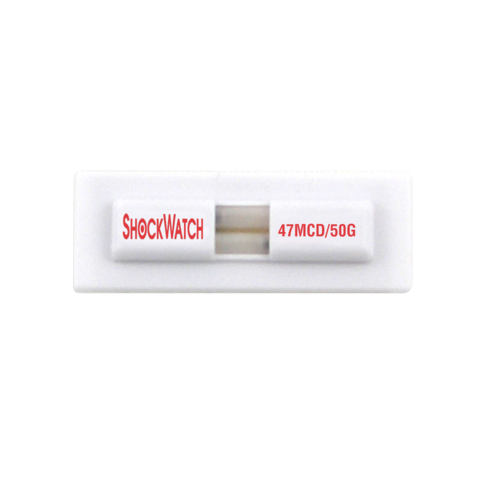

Mini Clip: Double Tube - Type 47 (50G@50msec)
Details

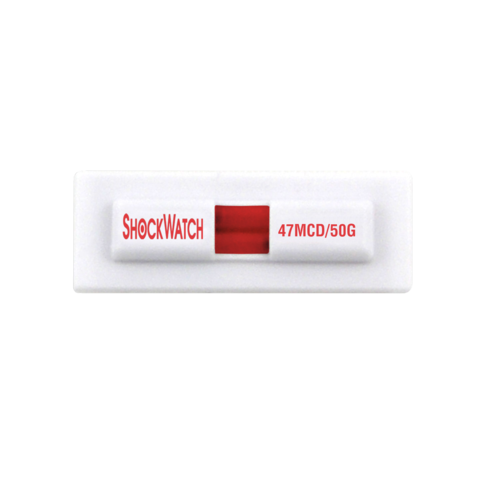

ShockWatch Clip impact indicators are tamperproof devices that turn bright red to indicate mishandling. These impact indicators can be mounted directly to products to understand the conditions experienced by the product even when it is outside protective packaging.
ShockWatch Clips are designed to protect products up to 500 cubic feet in volume and weighing up to 10,000 pounds. Other indicators and recorders are available from ShockWatch for additional sensitivities and monitoring requirements.
Applications
- Consumer Electronics
- Retail
- Aerospace and Defense
- Auto and Truck Parts
- Security Systems and Services
- Robotics
- Electronics
- Sports Equipment
- Equipment Rental
- Appliances
- Water Treatment / Filtration
- Computer Hardware
- Industrial Equipment
- Construction Supplies and Fixtures
- Healthcare
- HVAC
- Chemicals/Petro-Chemicals
- Furniture and Fixtures
- Scientific and Technical Instruments
- Medical Devices and Supplies
- Energy and Utilities
- Glass
Specifications
Product Family Sensitivity Range: 10G, 15G, 25G, 37.5G, 50G, 75G, 100G, (Multi-G – 25G / 50G / 75G)
Impact Duration: 0.5 – 50 ms
Tolerance: ±15% at 20°C, 1 ATM
Operating Temperature: -25°C to 80°C
Adhesive; Acrylic
Shelf Life: 2 years when stored at 20°C, 1 ATM
Selection Guide
| Product Name | Sensitivity |
| 85MC, CX85, 85MCD, CXX85 | 10G |
| 75MC, CX75, 75MCD, CXX75 | 15G |
| 65MC, CX65, 65MCD, CXX65 | 25G |
| 55MC, CX55, 55MCD, CXX55 | 37.5G |
| 47MC, CX47, 47MCD, CXX47 | 50G |
| 35MC, CX35, 35MCD, CXX35 | 75G |
| 30MC, CX30, 30MCD, CXX30 | 100G |
| Multi-G Clip | 25G, 50G, 75G (standard) |
