  • THERMOSTRIP DC SET 8 450-500ºF (PACK 16)

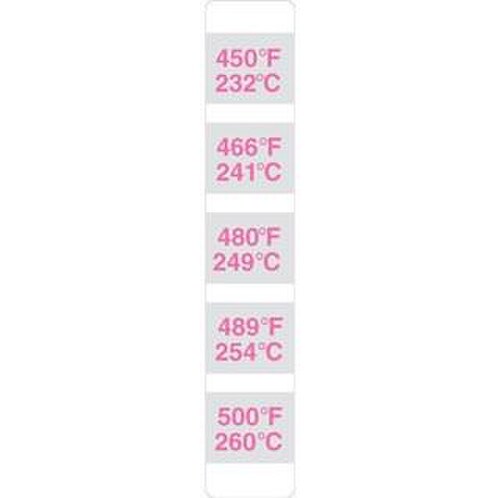

THERMOSTRIP DC SET 8 450-500ºF (PACK 16)

SKU: P9023-16
$21.45

ABOUT THIS PRODUCT:

A fast, simple temperature monitoring system based on Proprietary color change technologyThermostrip DC, is a highly accurate heat indicator designed to assist with the drying, curing, laminating or bonding process. Labels permanently change from silver to black when exposed to rated temperature.

Quantity: 16 Labels Per Pack

A fast, simple temperature monitoring system based on Proprietary color change technology

Details

THERMOSTRIP DC SET 8 450-500ºF (PACK 16)

Textile strips are a range of temperature test strips specifically developed for the textile industry that records the highest bracketed temperature reached by the label, permanently.

These highly accurate heat indicators are designed for use within the textile bonding process. The individual temperature settings will permanently change color to indicate the temperature achieved.

Perfect for temperature testing when using a fusing machine, confirming the temperature at the bonding site, and ensuring that garments finished or pressed when exposed to temperature do not overheat.

Applications

  • Inexpensive and Easy to Use
  • Immediate Response
  • Permanent Record of Highest Temperature
  • Oil, Water and Steam Resistant
  • Accuracy Tolerances:
  • Less than 100°C is +/-1°C
  • 100°C to 154°C is +/-1.5°C
  • Greater than 154°C is +/-4ºC
  • Temperature range 29-290°C
  • Silver to Black Color Change
  • Last Black Event is the highest temperature achieved
  • Size: 0.39" x 2.18" (10mm x 56mm)
  • Type: Vertical, Self Adhesive
  • Scale: °F and °C

Specifications

*Please note that Set 1 labels must be shipped Overnight.

Range: 37°C to 290°C

Accuracy

  • Set 1 & 2 Tolerance: ±1°C
  • Set 3 & 4 Tolerance: ±1.5°C
  • Set 5 to 8 Tolerance: ±4°C

Size: 10 mm x 56 mm

Adhesive: Self-adhesive label

Includes: 16 labels per pack

Temperature Range: 104°C-123°C, 121°C-160°C, 127°C-171°C, 132°C-182°C

Size: 83 x 6mm

Pack Size: Sold in packs of 50

Film: Polyester

Color Change: Light gray to black

Product Numbers

ITEM #

SET

TEMPERATURE RANGE °C

P9016-16

1

37º 40º 44º 49º 54º

P9017-16

2

60º 65º 71º 77º 82º

P9018-16

3

88º 93º 99º 104º 110º

P9019-16

4

116º 121º 127º 132º 138º

P9020-16

5

143º 149º 154º 160º 166º

P9021-16

6

171º 177º 182º 188º 193º

P9022-16

7

199º 204º 210º 216º 224º

P9023-16

8

232º 241º 249º 254º 260º
