THERMOSTRIP DC SET 5 290-330ºF (PACK 16)
Details
THERMOSTRIP DC SET 5 290-330ºF (PACK OF 16)
Temperature Tape for Drying and Curing
Textile Strips
Textile strips are a range of temperature test strips specifically developed for the textile industry that records the highest bracketed temperature reached by the label, permanently.
These highly accurate heat indicators are designed for use within the textile bonding process. The individual temperature settings will permanently change color to indicate the temperature achieved.
Perfect for temperature testing when using a fusing machine, confirming the temperature at the bonding site, and ensuring that garments finished or pressed when exposed to temperature do not overheat.
TEMPERATURE TAPE FEATURES
- Individual strip with 5 temperature events
- Eight (8) temperature sets
- Permanent color change from silver to black
- Attaches to the product in process
- Use in dry applications
- Permanent visible record
Applications
- Heat Indicator for Curing, Lamination and Web Processes
- Temperature Testing During Fusing at the Bonding Site
- Temperature Evidence During Screen Printing & Textile Processing
- UV Ink Temperature Reaction Analysis and Curing
Specifications
THERMOSTRIP DC
Range
37°C to 290°C
Accuracy
Set 1 & 2 Tolerance: ±1°C
Set 3 & 4 Tolerance: ±1.5°C
Set 5 to 8 Tolerance: ±4°C
Size
10 mm x 56 mm
Adhesive
Self-adhesive label
Includes
16 labels per pack
TEXTILE STRIPS
Temperature Range
104°C-123°C, 121°C-160°C, 127°C-171°C, 132°C-182°C
Size
83 x 6mm
Pack Size
Sold in packs of 50
Film
Polyester
Color Change
Light gray to black
Product Numbers
ITEM # | SET | TEMPERATURE RANGE °C |
---|---|---|
P9016-16 | 1 | 37º 40º 44º 49º 54º |
P9017-16 | 2 | 60º 65º 71º 77º 82º |
P9018-16 | 3 | 88º 93º 99º 104º 110º |
P9019-16 | 4 | 116º 121º 127º 132º 138º |

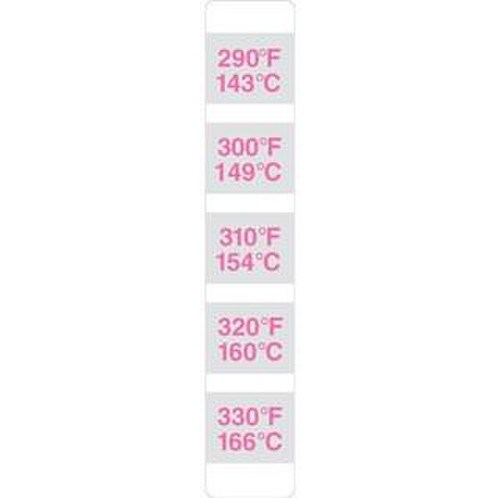

P9020-16 | 5 | 143º 149º 154º 160º 166º |
P9021-16 | 6 | 171º 177º 182º 188º 193º |
P9022-16 | 7 | 199º 204º 210º 216º 224º |
P9023-16 | 8 | 232º 241º 249º 254º 260º |
