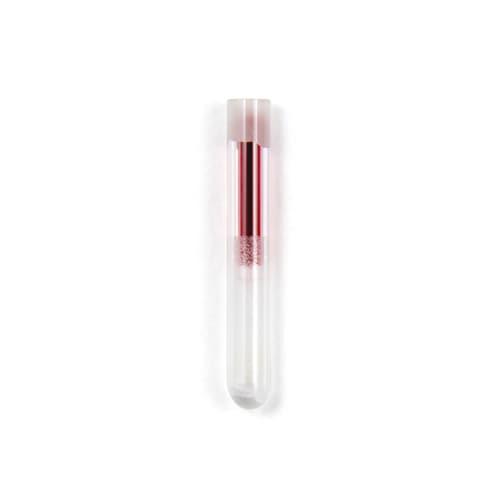

ShockWatch Tube - 15G - Type 075

SKU: 22409
$3.20
QuantityPrice

(*) Minimum Quantity: 100

ABOUT THIS PRODUCT:

Enhance your competitive edge with the ShockWatch Tube impact indicator, offering the advantage of seamlessly embedding impact-sensing technology directly into your product.

Details

The ShockWatch Tube impact indicator provides a competitive edge by allowing customers to embed impact-sensing technologies directly into their product. Embedding Shock Indicators into New Products with Power and Cost Considerations ShockWatch Tubes are mechanical which means they do not require a power source. These devices can be integrated into system hardware without the worry of additional power consumption. Simply mount the indicator into your product and you are ready to go. ShockWatch tubes are selected according to the impact amplitude and duration which define the damage profile of a product. Heavier products are more likely to be damaged by lower g amplitudes with longer durations while lighter products are more susceptible to higher g amplitudes with shorter durations.

Specifications

Indication Type: Visual, irreversible white to red color change
Activation Method: Product is live at point of manufacturing
Operating Temperature Range: -13°F to 176°F | -25°C to 80°C
Impact Sensitivity: See activation graphs for details
Activation Angles: Near 360° impact sensitivity. See Planar and 3D activation angle graphs.
Impact Duration: 0.5 to 50 msec
Accuracy:+15% at 68°F, 1 ATM | +15% at 20°C, 1 ATM
Responsiveness: Responds to Single Impact
Product Life: 2 years from date of manufacture when stored at 68°F | 20°C, 1 ATM
Dimensions:
0.675” +0.01” x 0.094” +0.002” Small Devices
0.750” +0.01” x 0.135” +0.003” Large Devices
Large Devices (Lower sensitivities): T-85, T-75, T-65, T-55
Small Devices (Higher sensitivities): T-47, T-35, T-30
Weight – Varies by sensitivity: 0.2608 grams +5% or less

Documents

NAFTA – Certificate of Origin
Impact Indicator Technical Data
